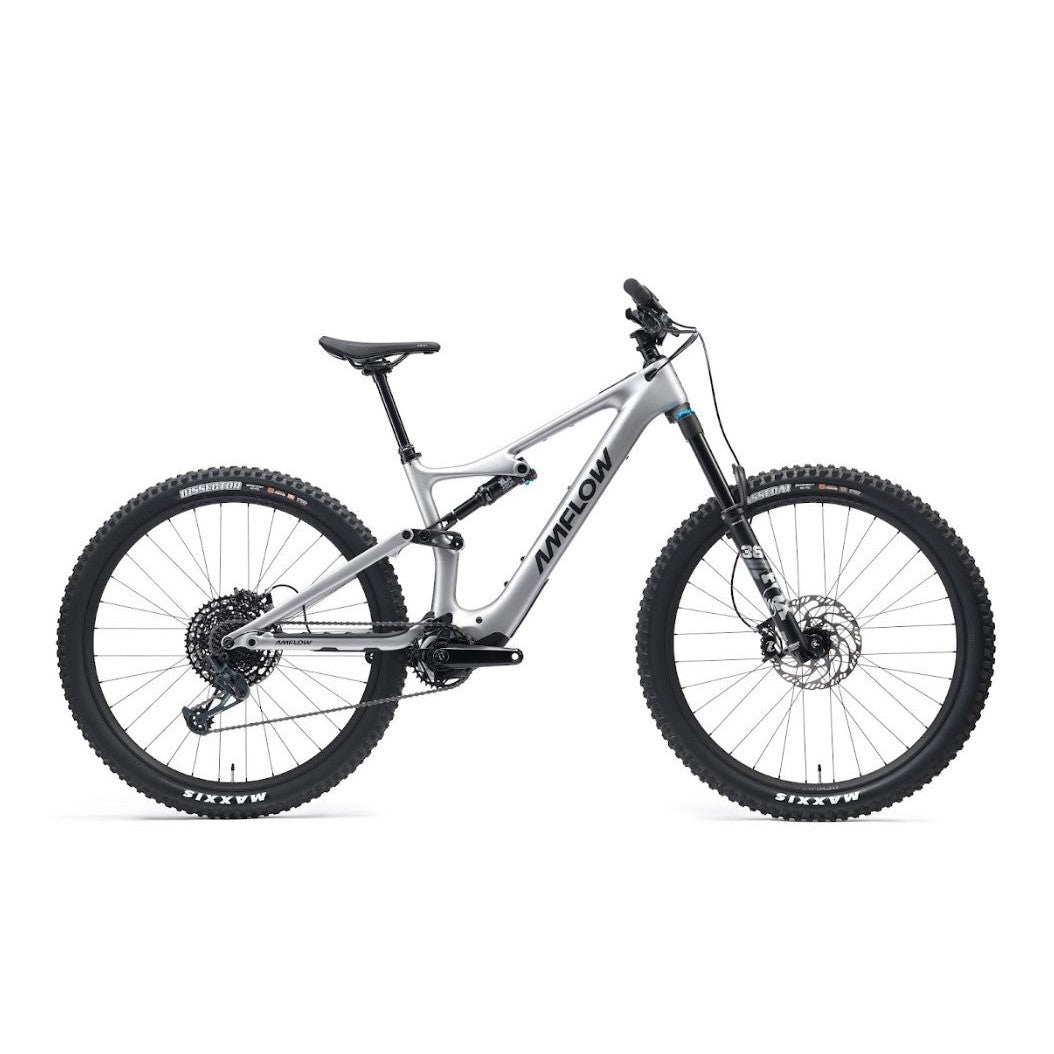

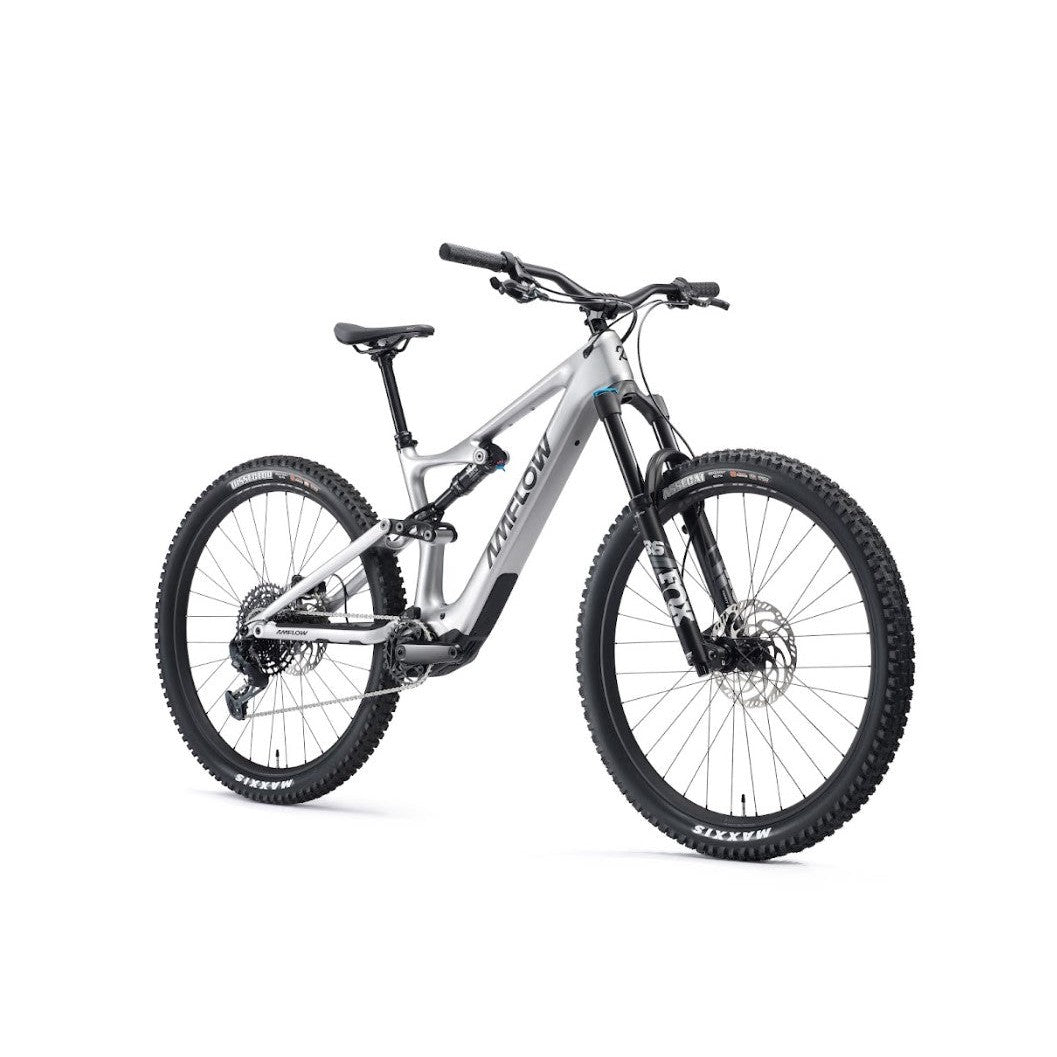

Equipped with the revolutionary DJI Avinox motor, the new Amflow PL Carbon e-mountain bike series has caused quite a stir. It boasts up to 120 Nm of torque, a peak output of 1,000 watts (both figures in Boost mode), and an unrivaled low weight. Even with the large 800 Wh battery, these newcomers (in the smaller frame sizes) achieve an incredible weight of just over 20 kg.
Amflow designed the PL Carbon so that you can use it with both a
You can ride with both 29" and a 27.5" rear wheel.
A 64.5° head angle. A potent FOX suspension system. And a chainstay length of 445 mm that's right in the sweet spot: The Chinese have struck a good balance between downhill capability and everyday usability with the first Amflow PL Carbon model. We liked the riding position immediately. You sit upright and comfortably on the bike.
| Frame set | |
|---|---|
| Intended use | Enduro |
| Frame | Amflow PL Carbon frame, compatible with 27.5 inch and 29 inch rear wheels,Carbon |
| Fork | FOX 36 Performance, GRIP shock, 15 × 110 mm, 44 mm rake,160 mm |
| Shock | FOX Float Performance, Custom Tune, EVOL air housing, 2-position lever,150 mm,185 × 55 mm |
| Motor & Battery | |
|---|---|
| Motor | Avinox M1 drive unit: 105 N·m,DJI,Avinox M1 drive unit: 105 N·m,105 Nm |
| Battery | Avinox integrated battery: 800 Wh,800 Wh |
| Charger | Avinox fast charger: 12 A/508 W |
| Control unit | Avinox wireless controllers: right and left side |
| Display | Avinox screen: 2-inch OLED control display |
| Wheels | |
|---|---|
| Wheelset | Amflow HMA-30 |
| Rims | Alloy, 29'', 30 mm inner width, 32H, tubeless-ready,29 inch |
| Spokes | SAPIM E-Light J-bend |
| Hubs | Front hub: Alloy, 2 sealed ball bearings, 15 × 110 mm thru axle, 32h, 6-bolt / Rear hub: Alloy, 4 sealed ball bearings, 148 × 12 mm thru axle, 32h, 6-bolt, 21T |
| Tires | Front: Maxxis Assegai MaxxTerra 29 × 2.5" WT 3C EXO E-25 TLR, Rear: Maxxis Dissector MaxxTerra 29 × 2.4" WT 3C EXO+ E-25 TLR |
| Drivetrain | |
|---|---|
| Rear derailleur | SRAM Eagle 70 Transmission Rear Derailleur,12-speed |
| Shifter | SRAM Eagle 70 Transmission Shifter | Single Click |
| Cassette | SRAM XS-1270 Eagle Transmission 10-52T |
| Cranks | Avinox SL crank (M/L: 155 mm; XL/XXL: 160 mm),(M/L: 155 mm; XL/XXL: 160 mm) |
| Brakes | |
|---|---|
| Brakes | Magura MT5 hydraulic disc brake, HC lever, 4-piston caliper with Shiftmix 3 |
| Brake discs | 203 mm MDR-C rotor (front and rear) |
| Cockpit | |
|---|---|
| Stem | Amflow Enduro stem, one-piece CNC machined, length: 35 mm, clamping diameter: 35 mm |
| Handlebars | Amflow Enduro Alloy Handlebars, 35 mm rise, 800 mm width, 5-degree upward sweep, 9-degree backward sweep |
| Grips | Amflow Enduro Grips |
| Components | |
|---|---|
| Saddle | Selle Royal SRX Plus |
| Seatpost | KS Rage-i, M: 150 mm, L: 170 mm, XL/XXL: 190 mm |
| Pedals | Not included in the scope of delivery |
